Mstar SF401-PLUS Portable CTCSS/DCS Decoder Frequency Counter

FOB Reference Price:Get Latest Price
US $55-85 / Pieces | 1 Piece/Pieces (Min. Order)
Color:
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Mstar
Model Number:
805
Type:
Antenna
Dimensions:
4.8CM
Frequency Range:
144/430 mhz PMR446
Storage Channel:
200
Talk Range:
5-10km
Frequency range:
27Mhz-3000Mhz
CTCSS/DCS CHECK:
136-174 / 400-520MHz
Signal attenuation s.w:
-10db
Battery Built-in:
level ICON
Li-ion Battery build-in:
3.7V 600mah
Current consumption:
10MA
TCXO crystal Oscillator:
+- 2.5ppm
Impedance input:
50 Ohm (BNC)
Dimensions size:
70 x 25 x 90mm
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
standard packing
Port
guangzhou
Lead Time :
Shipped in 7 days after payment

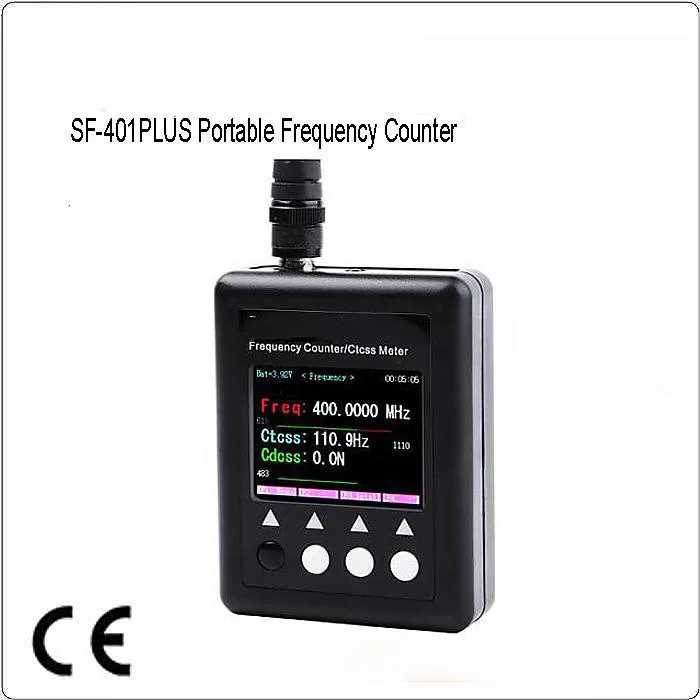

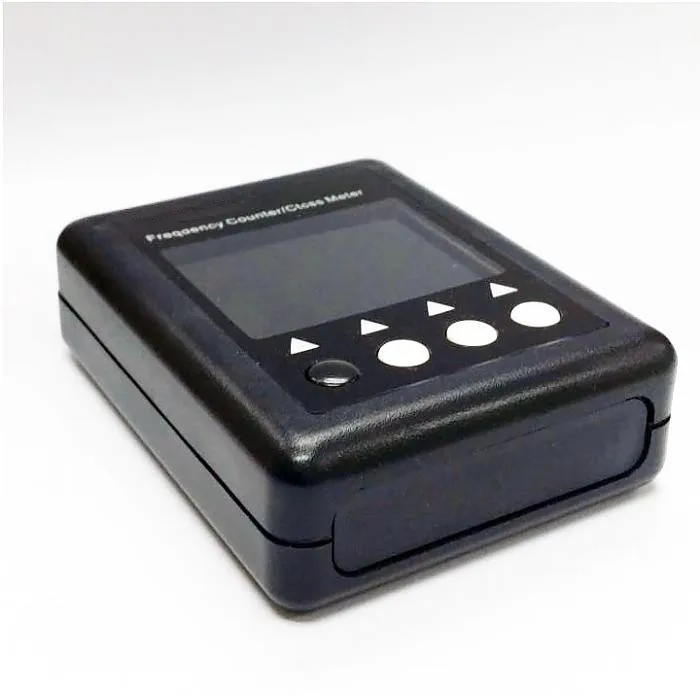

 Mstar SF401-PLUS Portable CTCSS/DCS Decoder Frequency Counter

Product Description



Introduction:

  • The frequency meter capable of measuring the parameters of the frequency of the continuous carrier signal walkie-talkies , with signal strength indicator.
    it is the tool of choice for maintenance personnel ,test frequency and signal strength of wireless enthusiasts.
  • This portable frequency counter is designed for counting continuous wave signal comes from Two-way Radio.
  • There are easy ranges for you to choose. The ranges cover most of the frequency of the two way radios you want to measure.
  • Its four-button control is easy to use and its small size allows you to carry it anywhere you like.
  •  Work by  TCXO(Temperature Compensate X'tal (crystal) Oscillator) ,In the range of -45 ℃ ~ 65 ℃ can reach ± 2 ~ ± 4ppm accuracy
  • This include very interesting frequency areas such as 2m HAM radio, all VHF and UHF
  • DMR Radio signal e frequency counter.
  • Easy Battery level


Feature & Specification:

  •    Frequency range: 27Mhz-3000Mhz
    ! Note: (27MHz to 100MHz It can not be guaranteed and the corresponding normal emission appliance)
  •   CTCSS/DCS Decoder  (must be 136-174/400-520MHz)
  •    Frequency counter for DMR radio
  •    Frequency digital 0.000  or 0.0000  ( +-0.001)
  •    Work by TCXO( Temperature Compensate X'tal (crystal) Oscillator) 2~2.5ppm
  •     Frequency Response time:  0.2-0.5sec.( CTCSS/CDCSS >0.5-1sec)
  •     TFT Color Display 240 x 320 ,LCD Dim level setting
  •     Build-in  Li-ion battery
  •     Net Weight: 113g
  •     4 buttons control
  •     Auto power off  1-9minutes
  •     Charging battery LED indicator

Specifications for SF-401 and SF-401 PLUS

FUNTION SF-401-PLUS
 DIGITAL RADIO signal:DMR
CTCSS/DCS CHECK 136-174 / 400-520MHz
 Signal attenuation s.w.
-10db
Battery Built-in:level ICON
TFT LCD: 320 x 240 pixels
Li-ion Battery build-in : 3.7V 600mah
Current consumption:10MA
TCXO crystal Oscillator+- 2.5ppm
Changer in:Micro USB +5V
Impedance input:50 Ohm (BNC)
Weight:113g
Dimensions size :70 x 25 x 90mm



Power On/Off
Power On –Press and Hold down the [black key] by 2 second
Power Off –Press and Hold down the [black key] by 4 second of number count down to 0

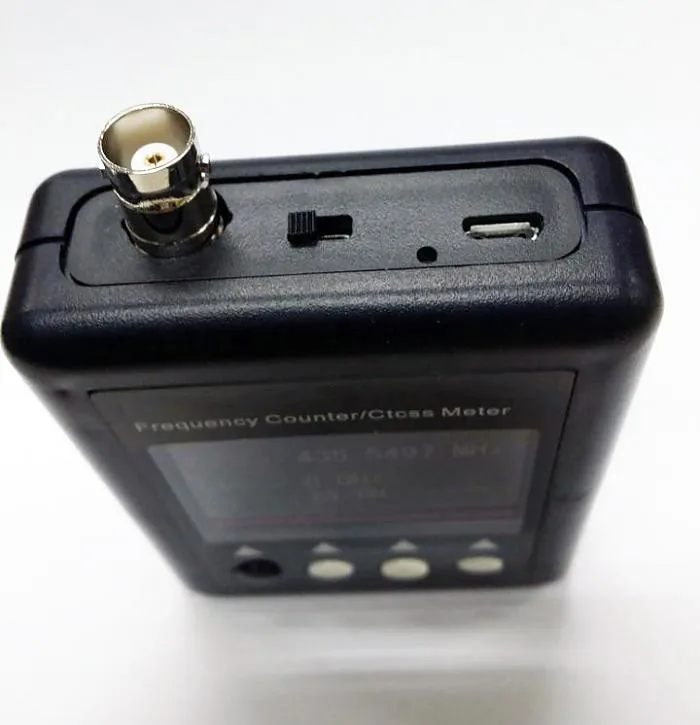

Charging the battery
Plug the Power cord into adaptor , Micro USB connected SF-401, The Led indicating:
 *The RED Led is light - Charging
 * The Green Led is light - Full

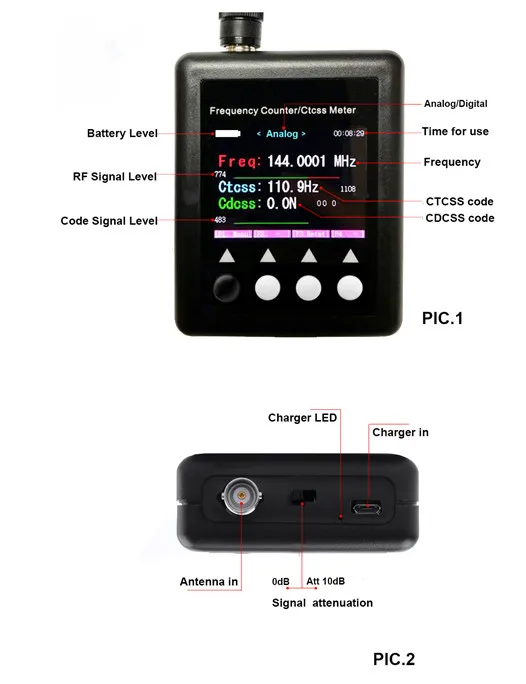

How to check Frequency measuring.    See PIC.3



The transmitter near the frequency counter antenna , see the signal reception conditions is zone green, you can test. Please see Pic.3
cautions:
e.g. display 1800.000Mhz  , The transmitter distance is too close to the frequency counter will affect the test results, , the signal bar is red .(see Pic.1)
e.g. display 0.000, , The transmitter distance is too far to the frequency counter and signal is weak ,will affect the test results,  the signal bar is low .(see Pic.1)



! Note: (27MHz to 100MHz It can not be guaranteed and the corresponding normal emission appliance) .


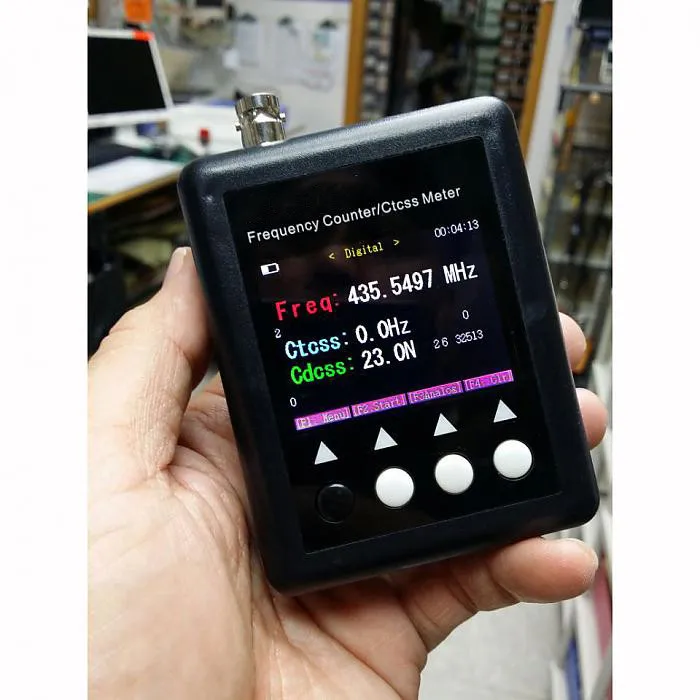

How to check Frequency of Digital DMR Radio



Press[ F3 Digital] from Measuring screen mode   See PIC.1
Note: Use Digital mode have 3 Decimal only

MENU funtion setting and save.    See PIC.4
Press [F1] > into menu Page
Press [F3 down] or [F4 Up] into System and Press [F2 Rtn] into system Page PIC.4
Press[F3 down] or [F4 Up] select funtion ,Press [F2 Edit] > [F3 - ][F4 +] change mode
Press[Menu]  >  [F1 ]to Exit  or  [F4 ] to Save and Exit



How to check CTCSS/DCS code
1.Radio must be 136-174/400-520MHz
2.Radio must be ANALOG

 CTCSS/DCS Decoder for ANALOG mode



CTCSS (Hz)
50.097.4151.4192.8
55.0100.0156.7196.6
67.0103.5159.8199.5
69.3107.2162.2203.5
71.9110.9165.5206.5
74.4114.8167.9210.7
77.0118.8171.3218.1
79.7123.0173.8225.7
82.5127.3177.3229.1
85.4131.8179.9233.6
88.5136.5183.5241.8
91.5141.3186.2250.3
94.8146.2189.9254.1

CDCSS  for ANALOG mode (N code only)

Standard(N)sf401
check
Standard(N)sf401
check
Standard(N)sf401
check
Standard(N)sf401
check
2323143143 266465465
2525 145271271466466
2626152152 274503503
3131155155306306506506
3232156156311311516516
36162162315315532532
4343165165 325546546
4747172172331331565565
5151174174 332606606
53205205343343612612
5454 212346346624624
6565223223351351627627
7171 225 356631631
7272226226364364632632
7373243243365365654654
7474244244371371662662
114114245245411411664664
115115 246412412703703
116116251251413413712712
122 252423423723723
125125 255431431731731
131131261261432432732732
132132263263445445734734
134134265265464464743743
 754754






Package Contents

1x SF401 PLUS  Frequency Counter
1 x UHF Antenna
1x English User Manual
1x USB charger cable
1x USB AC adapter 100-240V
